Electric Scissor Lifts for Sale
- Different platform heights for multiple aerial jobs.
- Stable scissor structure, wide working range.
- Safe operation with little maintenance.
Electric Scissor Lifts from Manufacturer
Electric scissor lifts, also known as self propelled scissor lifts, are powered by electric batteries rather than a combustion engine and more environmentally friendly. They are ideally suited for indoor operation due to a lack of exhaust emissions or loud noises when operating. As a compact and efficient mobile platform lift, electric scissor lifts are generally smaller, less bulky, and have narrower platforms than their diesel-powered counterparts.
A scissor lift is a popular model of aerial mobile platform lift, commonly used for interior work like ceiling construction, sign hanging, and other maintenance projects. Jovoo scissor lifts offer a lower platform height than boom lifts while still reaching heights of 5.8–13.8 meters, making them a versatile choice for various job sites.
View our scissor lift models, and our team is always ready to discuss your specific mobile platform lift needs.
Electric Scissor Lift Advantages:
- Compact Structure design brings flexibility and agility to aerial jobs;
- Complete safety device to ensure worker’s safety and efficiency;
- The extended platform gives workers a larger working range;
- High-quality battery has longer working life and endurance.
- High-quality electric system with smooth lift movement.
- CE & ISO certified, compliant with EU & US standards.
- 3-7 day dispatch, over 80 countries served.
Video Display
Ready to Boost Your Efficiency with Jovoo Electric Lifts?
✔ Factory Direct Price – no middlemen
✔ Lifetime Technical Support
✔ 100+ Successful Projects Worldwide
Electric Scissor Lift Models and Parameters
| Models | Z06N | Z06W | Z08N | Z08W | Z10W | Z12W | Z14W |
|---|---|---|---|---|---|---|---|
| Max. Working Height | 7.8m | 7.8m | 9.8m | 9.8m | 11.8m | 13.8m | 15.8m |
| Max. Platform Height | 5.8m | 5.8m | 7.8m | 7.8m | 9.8m | 11.8m | 13.8m |
| （L*W*H）Platform Dimensions | 1.68×0.74×1.1m | 2.27×1.12×1.1m | 2.27×0.86×1.1m | 2.27×1.12×1.1m | 2.27×1.12×1.1m | 2.27×1.12×1.1m | 2.7×1.11×1.1m |
| Length-stowed | 1.85m | 2.43m | 2.43m | 2.43m | 2.43m | 2.43m | 2.85m |
| Width-stowed | 0.79m | 1.21m | 0.89m | 1.21m | 1.21m | 1.21m | 1.31m |
| Height-stowed | 2.20m | 2.22m | 2.35m | 2.35m | 2.47m | 2.6m | 2.6m |
| Height -stowed( folding guardrails) | 1.67m | 1.67m | 1.9m | 1.9m | 1.93m | 2.06m | 2.06m |
| Slide-out platform extension deck - length | 0.9m | 0.9m | 0.9m | 0.9m | 0.9m | 0.9m | 0.9m |
| Ground clearance(center)-pothole guards retracted | 0.083m | 0.11m | 0.11m | 0.11m | 0.11m | 0.11m | 0.12m |
| Ground clearance - pothole guards deployed | 0.016m | 0.02m | 0.02m | 0.02m | 0.02m | 0.02m | 0.02m |
| Wheelbase | 1.36m | 1.87m | 1.87m | 1.87m | 1.87m | 1.87m | 2.24m |
| Weight | 1430kg | 2250kg | 2260kg | 2350kg | 2550kg | 2900kg | 3570kg |
| Max. Lift capacity | 230kg | 320kg | 320kg | 320kg | 320kg | 320kg | 230kg |
| Lift capacity - extension deck extended | 113kg | 113kg | 113kg | 113kg | 113kg | 113kg | 113kg |
| Max. Platform occupancy | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Drive speed-stowed | 3.0km/h | 3.0km/h | 3.2km/h | 3.2km/h | 3.2km/h | 3.2km/h | 3.2km/h |
| Drive speed-raised | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h |
| Gradeability -stowed | 25% | 25% | 25% | 25% | 25% | 25% | 25% |
| Max. Working Angel | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° |
| Turning radius -inside/outside | 0/1.67m | 0/2.1m | 0/2.1m | 0/2.2m | 0/2.2m | 0/2.2m | 0/2.5m |
| Lifting speed - raise/lower | 3-5m/min | 3-5m/min | 3-5m/min | 3-5m/min | 3-5m/min | 3-5m/min | 3-5m/min |
| Tires - solid non-marking | Φ305×100mm | Φ381×127mm | Φ381×127mm | Φ381×127mm | Φ381×127mm | Φ381×127mm | Φ381×127mm |
| Pump motor power | 3.3kw | 3.3kw | 3.3kw | 3.3kw | 4.5kw | 4.5kw | 4.5kw |
| Hydraulic Oil Capacity | 6L | 6L | 6L | 15L | 20L | 25L | 30L |
| Battery | 4*6V/200Ah | 4*6V/200Ah | 4*6V/200Ah | 4*6V/200Ah | 4*6V/200Ah | 4*6V/200Ah | 4*6V/240Ah |
| Charger | 24V/36A | 24V/36A | 24V/36A | 24V/36A | 24V/36A | 24V/36A | 24V/36A |
| Walking drive | hydraumatic | hydraumatic | hydraumatic | hydraumatic | hydraumatic | hydraumatic | hydraumatic |
| Battery | 24V/200Ah | 24V/200Ah | 24V/200Ah | 24V/200Ah | 24V/200Ah | 24V/200Ah | 24V/240Ah |
| Charger | 24V/36A | 24V/36A | 24V/36A | 24V/36A | 24V/36A | 24V/36A | 24V/36A |
Main Parts of Jovoo Electric Scissor Lift

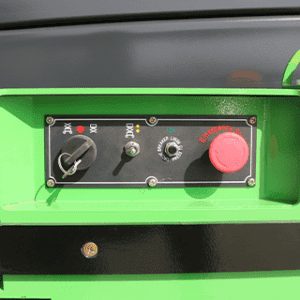

Ground Control Panel
Workers can use the ground control panel to control the lifting and lowering of the scissor platform. There is an emergency stop button on the panel in case of power failure or breakdown of the scissor lift machine.

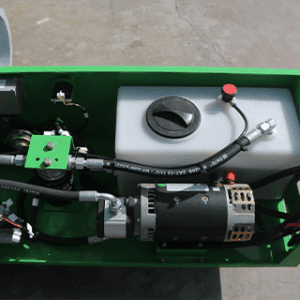

Hydraulic System
The chassis of Jovoo compact scissor lift can be opened to employ inspection, maintenance, and replacement tasks. The neatly arranged hydraulic system consists of hydraulic oil tank, pipes, and pump station.

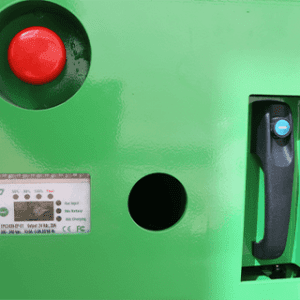

Overall Power Switch
The overall power switch (red) controls the power of the whole scissor lifting platform. Before using the scissor lift, turn on the switch and the machine will start working. If it doesn’t wok, press the emergency stop button to lower the platform.

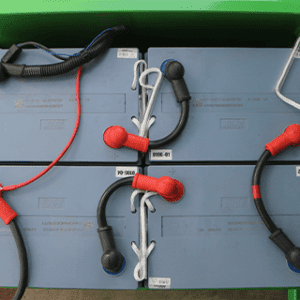

Battery Group
The 24V/200A or 24V/270Ah scissor lift batteries can be opted based on your working height. The battery group provides a longer endurance and is configured with charging protecting system. Battery powered scissor lift is also ideal for indoor use, energy-saving and safe.

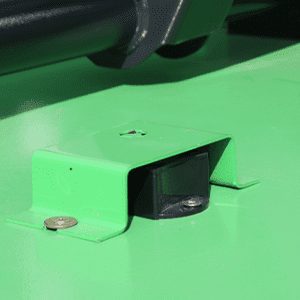

Tilt Alarming System
It will be triggered when the gradeability exceeds 3◦, which can prevent the machine from tilting to protect users safety. If you need to work on the rough terrains, we recommend our versatile tracked scissor lift to help you overcome the uneven ground.

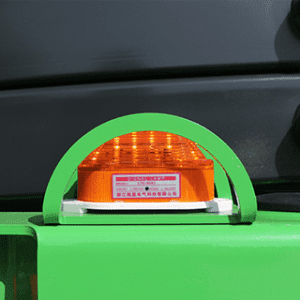

Work Indicating Light
If the work indicating light is on, the electric scissor lift is normally operated, otherwise, users should check whether there is a fault existing. The indicating light can also warn people around the machine to stay away from the scissor lift to ensure safety.

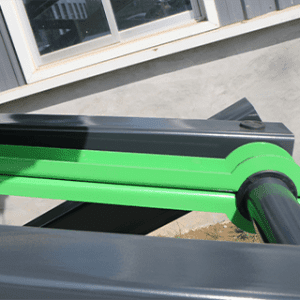

Maintenance Support
When workers inspect or repair the scissor lift, the maintenance support can be adopted to support the scissor structure steadily, which can build a safety space for workers to do maintenance tasks.

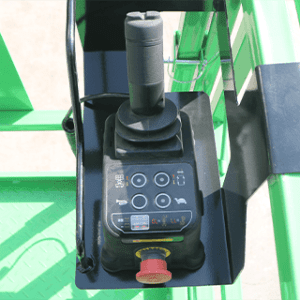

Platform Controller
The platform control panel can precisely control the driving speed of the machine, the lifting and lowering of platform. Also there is an emergency stop button at the side of the controller to keep safety.

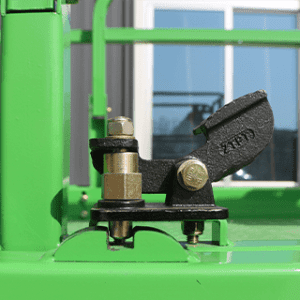

Foot Switch for Extended Platform
Put the foot on this foot switch and meanwhile push the platform outside, the extended platform will be stretched out. Inversely, step on the foot switch and pull the extended platform inside, the extended platform will be retracted.
FAQ
While production lead times range from 3 to 45 days by model, many of our popular/regular models are stocked and ready for immediate shipment.
Customize your product: Choose from colors, branding, and a wide array of options.
We tailor packaging and shipping methods to your specific order.
2-Year Warranty & 24/7 Online Support.
