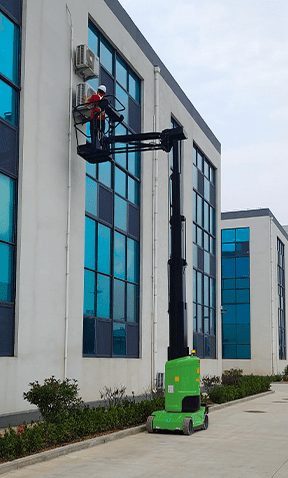

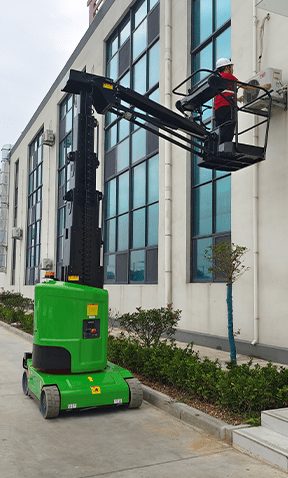

Vertical Mast Lift with Jib for Sale
✔ 11.2m Working Height & 3m Jib Reach
✔ Compact Footprint for Narrow Aisle Access
✔ Direct Factory Price | CE Certified

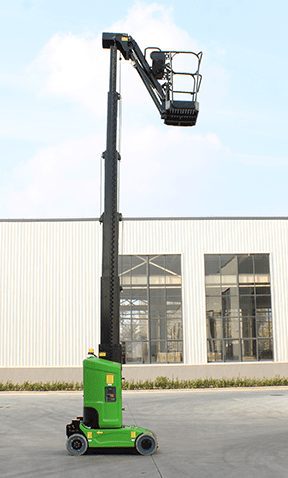

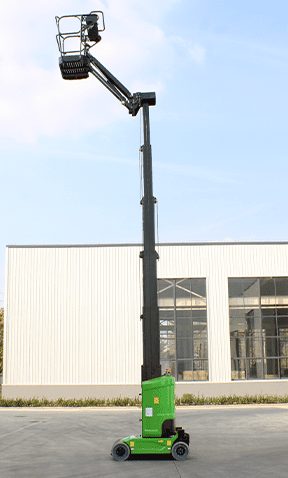

Introduction to Vertical Mast Lift with Jib (M9.2J)
JOVOO vertical mast lift with jib (Model M9.2J) is a remarkable engineering innovation that has revolutionized the way we approach various industries such as construction, telecommunications, and emergency services. This ingenious piece of equipment combines the advantages of a telescopic mast with the versatility of a jib, providing a wide range of applications and benefits.
A vertical telescopic mast with jib is essentially a vertical tower-like structure that can be extended or retracted to varying heights, depending on the specific requirements of a project. This telescopic feature allows for easy transportation and deployment, making it an ideal solution for mobile operations. The jib, on the other hand, is an arm-like extension that can be rotated and maneuvered to reach difficult-to-access areas with precision and ease.
One of the key advantages of the vertical telescopic mast with jib is its ability to provide a stable and secure platform for various tasks. Whether it is for elevating maintenance personnel, servicing tall structures, or installing equipment in hard-to-reach locations, this equipment ensures safety and efficiency. The telescopic mast can be extended to the desired height, providing a stable base for the jib to perform its tasks effectively.
Moreover, the versatility of the vertical telescopic mast with jib is unparalleled. It can be customized and equipped with additional features such as cameras, lights, or sensors, depending on the specific needs of the industry. If you are not sure whether this mast lift with jib is suitable for your requirement, feel free to contact us to get a right aerial lifting solution.

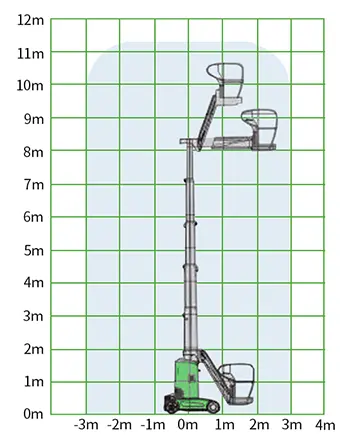

Working Range of Mast Lift with Jib
Video
Parameters of Vertical Mast Lift with Jib
| Model | M9.2J |
|---|---|
| Max. Working Height | 11.2m |
| Max. Platform Height | 9.2m |
| Loading Capacity | 200kg |
| Machine Dimension | 2.53*1.0*1.99m |
| Platform Size | 0.62*0.87m |
| Wheelbase | 1.22m |
| Lifting Motor | 24V/3KW |
| Drive Motor | 24V/0.9KW |
| Drive Speed-stowed | 4.5km/h |
| Drive Speed-raised | 0.5km/h |
| Up/Down Speed | 42/38 sec |
| Gradeability | 25% |
| Max. Working Angle | X-2.5°, Y-2.5° |
| Battery | 24V/240Ah |
| Charger | 24V/30A |
| Tire | φ381*127mm |
| Weight | 2950kg |
Safety Features
Proportional Controls
Drivable At Full Height
Automatic Brake System
Emergency Lowering System
Fault Diagnostic System
Automatic Pothole Protection
Non-Marking Tyres
Emergency Stop Button
Self-Locking Gate
Tubing Explosion-Proof System
Mast Lift with Jib Applications
A: The articulating jib provides crucial “up-and-over” reach, allowing operators to maneuver over fixed machinery, racking, and pipes without moving the base machine—ideal for congested industrial plants and retail spaces.
A: Yes, as a direct manufacturer, JOVOO provides custom colors, battery configurations (AGM or Lithium), and specialized platform dimensions for global equipment dealers and end-users.
