elescopic Mast Lift mobile
Telescopic Mast Lift

Telescopic Mast Lift for Sale

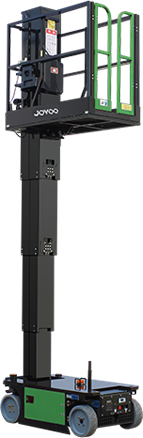

telescopic-mast-lift-product1

Introduction to Telescopic Mast Lift

A telescopic mast lift is a type of aerial work platform that is used to lift workers and equipment to high elevations. It is commonly used in construction, maintenance, and repair work where access to high areas is required. The telescopic mast lift is designed with a hydraulic system that allows the mast to extend and retract, providing a flexible and versatile platform for workers to perform their tasks. This vertical mast lift can reach heights of up to 8 meters or more, making it an essential tool for many industries. With its ability to provide safe and efficient access to high areas, the self-propelled mast lift has become an indispensable piece of equipment for many businesses.

Telescopic Mast Lift Models and Parameters

ModelM3.6M4.8M6.0
Max. Working Height5.6m6.8m8.0m
Max. Platform Height3.6m4.8m6.0m
Loading Capacity227kg227kg159kg
Ext. Platform Capacity114kg114kg114kg
Machine Dimension1.36*0.76*1.7m1.36*0.76*1.98m1.36*0.82*1.98m
Platform Size1.3*0.7*1.1m1.3*0.7*1.1m1.3*0.7*1.1m
Ext. Platform Length0.51m0.51m0.51m
Wheelbase1.04m1.04m1.04m
Lifting Motor24V DC/1.3KW24V DC/1.3KW24V DC/1.3KW
Drive Motor2X24V DC/0.5KW2X24V DC/0.5KW2X24V DC/0.5KW
Drive Speed-stowed4km/h4km/h4km/h
Drive Speed-raised1.1km/h1.1km/h1.1km/h
Up/Down Speed31/32 sec41.5/42 sec52/53 sec
Gradeability25%25%25%
Max. Working Angle1.5°1.5°
Battery2×12V/100Ah2×12V/100Ah2×12V/100Ah
Charger24V/15A24V/15A24V/15A
TireΦ305*100mmΦ305*100mmΦ305*100mm
Weight810kg980kg1060kg

Safety Features

Proportional Controls

Drivable At Full Height

Automatic Brake System

Emergency Lowering System

Onboard Diagnostic System

Automatic Pothole Protection

Non-Marking Tyres

Emergency Stop Button

Cylinder Holding Valve

Anti-Pinch Protection System

Telescopic Mast Lift Applications
