Towable Boom Lifts for sale
Flexible, zero-emission articulated platform for indoor & outdoor aerial access.
- Max. Platform Height: 10m~17.85m
- Max. Lift Capacity: 200kg

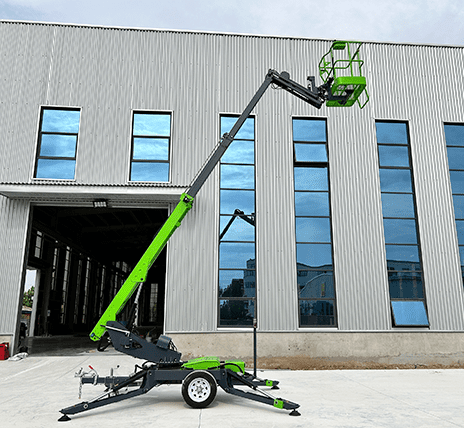

Introduction to Towable Boom Lift
The towable boom lift, also called tow-behind boom lift, trailer-mounted boom lift, or cherry picker, is a type of aerial lift designed to lift workers on construction sites, farms, or any other indoor and outdoor sites. The biggest advantage it offers on job sites is that this kind of machine provides the operator with reach and mobility from horizontal and vertical level, combining the flexibility of a small utility vehicle with the versatility of a self-propelled lift and platform. Jovoo towable boom lifts can raise workers to heights of almost 18 meters. While height and platform capacities vary by model. You can browse the below boom lift models to choose the right one for your work need. Also, special configurations can be customized at your request.
Towable Boom Lift Advantages:
- The boom lift is equipped with battery power, zero pollution and noise;
- The automatic leveling system ensures a stable and safe work condition;
- The advanced gasoline power plus generator makes the lift more powerful;
- The accurate remote and micro control guarantees the precise positioning;
- The compact design achieves smooth movement indoors or outdoors.
Towable Boom Lift Models and Parameters
| Model | T08 | T10 | T12 | T14 | T16 |
|---|---|---|---|---|---|
| Max Working Height | 10m | 12m | 14m | 15.8m | 17.85m |
| Max Platform Height | 8m | 10m | 12m | 13.8m | 15.85m |
| Max Working Radius | 5m | 5.5m | 5.9m | 6.1m | 6.6m |
| Platform Dimensions (L*W) | 0.9×0.7m | 0.9×0.7m | 0.9×0.7m | 1.2×0.7m | 1.2×0.7m |
| Machine Weight | 1490kg | 1550kg | 1640kg | 1900kg | 1980kg |
| Load Capacity | 200kg | 200kg | 200kg | 200kg | 200kg |
| Platform Rotation | ±80° | ±80° | ±80° | ±80° | ±80° |
| Jib Rotation | ±70° | ±70° | ±70° | ±70° | ±70° |
| Turntable Rotation | 355° | 355° | 355° | 355° | 355° |
| Drive Speed (Stowed) | 70km/h | 70km/h | 70km/h | 70km/h | 70km/h |
| Gradeability | 45% | 45% | 45% | 45% | 45% |
| Max Working Angle | 9° | 9° | 9° | 9° | 9° |
| Battery Power | 24V/192Ah | 24V/192Ah | 24V/192Ah | 24V/192Ah | 24V/192Ah |
| Pump Motor Power | 4.5kw | 4.5kw | 4.5kw | 4.5kw | 4.5kw |
| Control Voltage | 12V | 12V | 12V | 24V | 24V |
| Power Plus Generator (Optional) | 2kw | 2kw | 2kw | 2kw | 2kw |
| Optional | Remote control | Remote control | Remote control | Remote control | Remote control |
| Optional | Assisted walking | Assisted walking | Assisted walking | Assisted walking | Assisted walking |
| Optional | Gasoline engine/diesel engine/lithium battery/AC power | Gasoline engine/diesel engine/lithium battery/AC power | Gasoline engine/diesel engine/lithium battery/AC power | Gasoline engine/diesel engine/lithium battery/AC power | Gasoline engine/diesel engine/lithium battery/AC power |
