Model: V09

Key Specs:

  • Platform Capacity: 200kg
  • Max Working Height: 11.5m
  • Max Working Radius: 6.2m

9m Articulating Boom Lifts for Sale

The Jovoo V09 Articulating Boom Lifts are designed to meet those low-height aerial work requirements. With the maximum working height being 11.5m, they are ideal for constructions, decorations, telecommunications, advisement placement, airports, etc. The light self weight, compact design and high mobility make it convenient to work in narrow spaces. This kind of one man lift platform is popular for small business, home use or warehouse operations.

electric-articulating-boom-lift-V09-2
electric-articulating-boom-lift-V09-3

A --- Platform Width: 0.7m

B --- Platform Length: 1.4m

C --- Machine Height: 2.0m

D --- Machine Length: 5.2m

E --- Machine Width: 1.27m

F --- Wheelbase: 1.75m

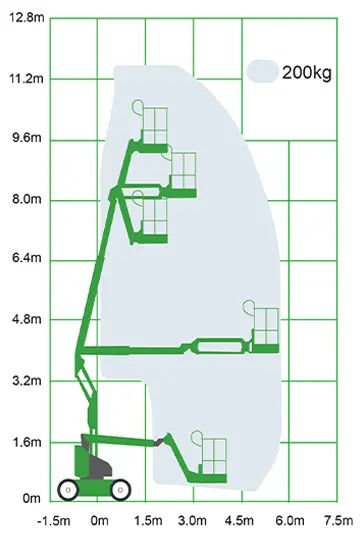

9m Articulating Boom Lift: Video & Range

9m范围图

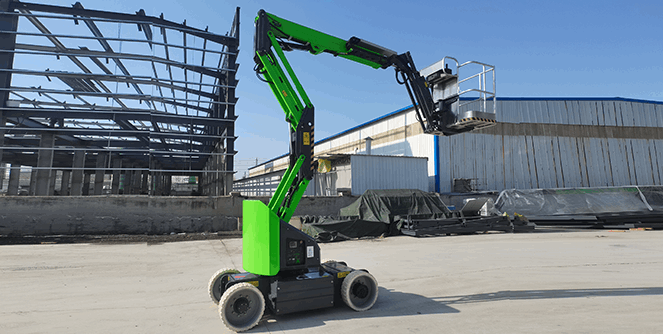

9m Articulating Boom Lift Details

09

Specifications

ModelV09
Max Working Height11.5m
Max Platform Height9.5m
Max Crossing Height4.5m
Max Working Radius6.2m
Rated Load Capacity200kg
Ground Clearance (Center)0.14m
Platform Rotation±80°
Turntable Rotation355°
Driving Speed (Stowed)4.8km/h
Gradeability (Stowed)35%
Machine Weight4800kg
Battery48V/320Ah
Control Voltage24V
Pump Motor4kw
  1. The V09 model has excellent performance among similar electric boom lifts.The width is only 1.27 meters with outstanding passing ability.
  2. Intelligent and precise control system, humanized layout, and lubrication-free design, consequently easy to use and maintain.
  3. It provides comprehensive security protection and rich configuration options. It has the ultimate lightweight layout and long battery life among products of the same level.
  4. “Σ-shaped”boom with compact structure and flexible extension can realize vertical lifting and horizontal extension and has strong obstacle-surpassing ability.
  5. 160°rotatable platform provides a larger working range to improve work efficiency.
  6. The storage state of the boom lift can be switched, the length is only 3.8 meters, and the aluminum alloy working bucket can be disassembled and assembled flexibly.
  7. Intuitive and friendly control panel makes easy to operate full range operation. Electro-hydraulic proportional system control is accurate and efficient, providing chassis tilt protection, emergency landing, safe speed limit, and flexible start & stop technology.
  1. Solid, non-marking tires
  2. Mechanical Anti-Extrusion Protection System
  3. Air tube connection to platform option
  4. Lithium battery and power plus generator
  5. Aluminum alloy and insulated working bucket
  6. Cold-resistant, fire-resistantand biodegradable hydraulic oil
