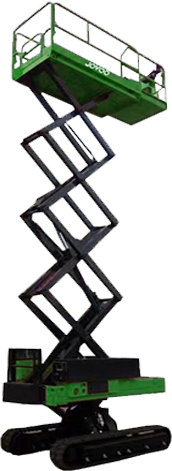

Introduction to Bi-Levelling Tracked Scissor Lift

Bi-levelling tracked scissor lift, also called self-levelling or automatic levelling rough terrain scissor lift. A bi-levelling tracked scissor lift is a type of aerial lift used to access elevated areas. It is designed to provide a safe and efficient way to reach heights that are otherwise inaccessible. It is equipped with bi-levelling technology making it ideal for challenging terrain slopes. Its compact size allows it to operate in small spaces, and a max working height of 14m means it is versatile enough for many different applications.

The lift is composed of two scissor arms connected to a track system. The track system allows the lift to move up and down and side to side. The lift is powered by an electric motor and is operated by a remote control. Also, the lift can be used to access areas such as ceilings, walls, and other elevated surfaces. Please check Jovoo bi-levelling tracked scissor lift models to choose the one to help your business.

Bi-levelling tracked scissor lift, also called self-levelling or automatic levelling rough terrain scissor lift. A bi-levelling tracked scissor lift is a type of aerial lift used to access elevated areas. It is designed to provide a safe and efficient way to reach heights that are otherwise inaccessible. It is equipped with bi-levelling technology making it ideal for challenging terrain slopes. Its compact size allows it to operate in small spaces, and a max working height of 14m means it is versatile enough for many different applications. The lift is composed of two scissor arms connected to a track system. The track system allows the lift to move up and down and side to side. The lift is powered by an electric motor and is operated by a remote control. Also, the lift can be used to access areas such as ceilings, walls, and other elevated surfaces. Please check Jovoo bi-levelling tracked scissor lift models to choose the one to help your business.1.4

Bi-Levelling Tracked Scissor Lift Advantages

  • One-key levelling function suitable for rough terrain environments;
  • The working platform can be extended to pass through obstacles;
  • Suitable for narrow working spaces and operation on 20% slopes;
  • Overload warning, remote control, one-key emergency stop, etc.

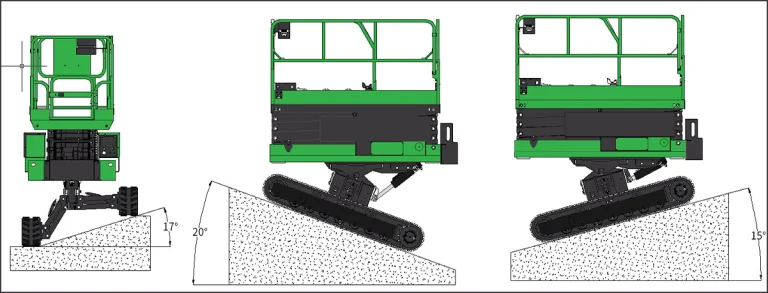

Bi-Levelling Tracked Scissor Lift working angle
Gradeability

Video Display

Bi-Levelling Tracked Scissor Lift Models and Parameters

ModelZ08TSLZ10TSLZ12TSL
Rated Load250kg250kg250kg
Max Platform Height8.3m10m12m
Max Working Height10.3m12m14m
Machine Length2530mm2530mm2530mm
Machine Width (Retracted)1770mm1770mm1770mm
Machine Height (Retracted)2432mm2582mm2712mm
Platform Dimensions2280×1136×1260mm2280×1136×1260mm2280×1136×1260mm
Length of Extended Platform900mm900mm900mm
Weight3398kg3698kg3998kg
Battery8×6V (200Ah)8×6V (200Ah)8×6V (200Ah)
Charger30A30A30A
