Self-Propelled Double Mast Vertical Lift for Sale

Self-Propelled Double Mast Vertical Lift for Sale

Developed with the global market in mind, JOVOO self-propelled double mast vertical lift is specifically tailored to cater to the diverse requirements of various industries. Whether it’s construction, manufacturing, warehousing, or maintenance, this battery powered dual mast lift is engineered to deliver exceptional performance in any setting.

One of the standout features of this vertical lift is its double mast design, which provides increased stability and lifting capacity. This ensures that operators can confidently undertake tasks at greater heights, empowering them to complete projects efficiently and with utmost safety. Additionally, the self-propelled feature eliminates the need for manual pushing or pulling, allowing operators to navigate through tight spaces effortlessly.

Safety is paramount, and this vertical lift is equipped with advanced safety features that prioritize the well-being of operators and those working around them. From emergency stop buttons and non-slip platforms to safety rails and interlocking gates, every aspect of this equipment is meticulously designed to mitigate risks and prevent accidents.

Furthermore, the versatility of the self-propelled double mast vertical lift allows it to adapt to various job requirements. With standard platform sizes and adjustable heights, this equipment can reach specific working heights, making it an ideal choice for a wide range of applications.

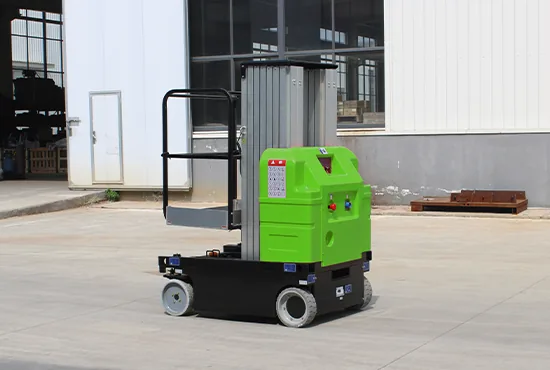

Self Propelled Double Mast Vertical Lift 1

Features

  1. Proportional controls
  2. Automatic pothole protection
  3. Drivable at full height
  4. Non-marking tires
  5. Automatic brake system
  6. Emergency stop/lowering button
  7. Explosion-proof cylinders
  8. On-board diagnostic system

Self-Propelled Double Mast Vertical Lift Models and Parameters

ModelsTAM0.2-7.5STAM0.2-9S
Max Working Height9.5m11m
Max Platform Height7.5m9m
Platform Capacity200kg150kg
Occupants11
Platform Dimension (L*W)1.00m*0.65m1.00m*0.65m
Machine Dimension (L*W*H)1.46m*1.01m*1.99m1.46m*1.01m*1.99m
Wheel Base1.14m1.14m
Turning Radius0.3m0.3m
Gradeability25%25%
Travel Speed (Stowed)4km/h4km/h
Travel Speed (Raised)1.1km/h1.1km/h
Driving Motor2x24VDC/0.5KW2x24VDC/0.5KW
Lifting Motor24VDC/1.2KW24VDC/1.2KW
Battery2x12V/100Ah2x12V/100Ah
Charger24V/15A24V/15A
Weight1270kg1345kg
