Model: J20
Key Specs:
- Load Capacity: 300kg
- Max Working Height: 21.6m
- Max Working Radius: 14.5m
- IP65 waterproof level
- Four-wheel drive with balanced axles.
- REXROTH + ZAPI Electric control system

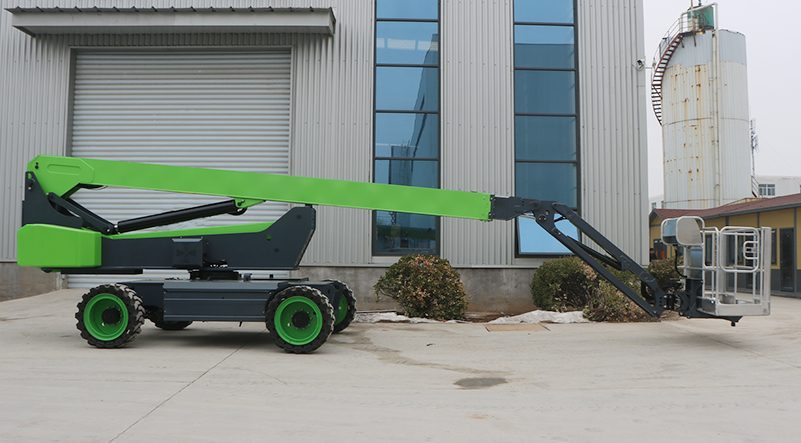

J20 Telescopic Boom Lifts for Sale
Our J20 Telescopic Boom Lift redefines aerial productivity with its maximum working height of 21.6 meters. With unparalleled versatility, it is designed for diverse applications of construction, maintenance, telecommunications, film production, and more. Integrated with an IP65 waterproof level for durability, and featuring four-wheel drive with balanced axles for stability and traction, J20 ensures seamless operation in any environment. Further enhanced by the REXROTH + ZAPI Electric control system, this device delivers precise performance. Whether for small businesses, large corporations, or homeowners, it provides unmatched reliability and performance. Improve your projects’ confidence with the Jovoo J20 Telescopic Boom Lifts—your excellent aerial lift solution!
A ---Machine Length: 10.3m
B---Machine Width: 2.49m
C---Machine Height: 2.26m
D---Wheelbase: 2.5m
J20 Telescopic Boom Lift: Video & Range
J20 Telescopic Boom Lift Details
Specifications
Features
Options
Specifications
| Model | J20 |
| Max Working Height | 21.6m |
| Max Platform Height | 19.6m |
| Max. Operating radius | 14.5m |
| Platform dimensions | 1.8*0.75m |
| Length-stowed | 10.3m |
| Width-stowed | 2.49m |
| Height-stowed | 2.26m |
| Wheelbase | 2.5m |
| Ground clearance(center) | 0.3m |
| Weight | 9100kg |
| platform occupancy | 3 people |
| Lift capacity | 300kg | platform occupancy | 3 people |
| Platform rotation | ±80° |
| Jib rotation | ±70° |
| Turntable rotation | 360°continuous |
| Drive speed-stowed | 4.8km/h |
| Drive gradeability | 45% |
| Max. Working angle | 3° |
| Turning radius (outside) | 5m |
| Drive & steer mode | 4×2 |
| Battery | 48V/420Ah |
| Pump motor | 12kw |
| Drive electric motor | 3.3kw |
| Control voltage | 12V |
| LFP battery | Optional |
| Power Plus Generator | Optional |
| Insulated platform | Optional |
Features
- The Ground Control Panel features a REXROTH + ZAPI Electric control system, ensuring IP65 waterproof level, abundant error code display interface, simulated operation icon, and emergency stop and interlock for machine entry and exit.
- 160°rotatable platform provides a larger working range, while narrow turntable with compact layout, improves work efficiency. And the aluminum alloy working bucket can be disassembled and assembled flexibly.
- Intuitive and friendly control panel makes easy to operate full range operation. Electro-hydraulic proportional system control is accurate and efficient. It provides chassis tilt protection, emergency lowering, safe speed limit, comfortable start and stop technology and other protective measures.
- The battery is produced byQUIMO BATTERY.QUIMO BATTERY is a lead-acid battery specially used for aerial work boom lifts, and 8 batteries provide a strong power of 48V/420Ah for the V18.
- The aluminum alloy working platform offers a combination of lightweight construction, high strength, rust resistance, and easy disassembly, with the option of a steel working platform available.
- The hydraulic valve is manufactured by SANT (HydraForce).
- The Platform Control Panel is equipped with a REXROTH + ZAPI Electric control system, enabling full proportional control of walking and jib movements, driving confirmation, high and low-speed options, machine power display, and key fault light alarm.
- The bolts utilize the DACROMET process, a cutting-edge surface treatment technology known for its superior corrosion resistance, representing a “green electroplating” alternative to traditional methods.
Options
- Solid Non-Marking Tires
- Foam-Filled Tires
- Lithium Iron Phosphate Batteries
Specifications
Features
Options
Specifications
| Model | J20 |
| Max Working Height | 21.6m |
| Max Platform Height | 19.6m |
| Max. Operating radius | 14.5m |
| Platform dimensions | 1.8*0.75m |
| Length-stowed | 10.3m |
| Width-stowed | 2.49m |
| Height-stowed | 2.26m |
| Wheelbase | 2.5m |
| Ground clearance(center) | 0.3m |
| Weight | 9100kg |
| platform occupancy | 3 people |
| Lift capacity | 300kg | platform occupancy | 3 people |
| Platform rotation | ±80° |
| Jib rotation | ±70° |
| Turntable rotation | 360°continuous |
| Drive speed-stowed | 4.8km/h |
| Drive gradeability | 45% |
| Max. Working angle | 3° |
| Turning radius (outside) | 5m |
| Drive & steer mode | 4×2 |
| Battery | 48V/420Ah |
| Pump motor | 12kw |
| Drive electric motor | 3.3kw |
| Control voltage | 12V |
| LFP battery | Optional |
| Power Plus Generator | Optional |
| Insulated platform | Optional |
Features
- The Ground Control Panel features a REXROTH + ZAPI Electric control system, ensuring IP65 waterproof level, abundant error code display interface, simulated operation icon, and emergency stop and interlock for machine entry and exit.
- 160°rotatable platform provides a larger working range, while narrow turntable with compact layout, improves work efficiency. And the aluminum alloy working bucket can be disassembled and assembled flexibly.
- Intuitive and friendly control panel makes easy to operate full range operation. Electro-hydraulic proportional system control is accurate and efficient. It provides chassis tilt protection, emergency lowering, safe speed limit, comfortable start and stop technology and other protective measures.
- The battery is produced byQUIMO BATTERY.QUIMO BATTERY is a lead-acid battery specially used for aerial work boom lifts, and 8 batteries provide a strong power of 48V/420Ah for the V18.
- The aluminum alloy working platform offers a combination of lightweight construction, high strength, rust resistance, and easy disassembly, with the option of a steel working platform available.
- The hydraulic valve is manufactured by SANT (HydraForce).
- The Platform Control Panel is equipped with a REXROTH + ZAPI Electric control system, enabling full proportional control of walking and jib movements, driving confirmation, high and low-speed options, machine power display, and key fault light alarm.
- The bolts utilize the DACROMET process, a cutting-edge surface treatment technology known for its superior corrosion resistance, representing a “green electroplating” alternative to traditional methods.
Options
- Solid Non-Marking Tires
- Foam-Filled Tires
- Lithium Iron Phosphate Batteries
