Model: V12
Key Specs:
- Platform Capacity: 200kg
- Max Working Height: 14.2m
- Max Working Radius: 6.5m
12m Articulating Boom Lifts for Sale

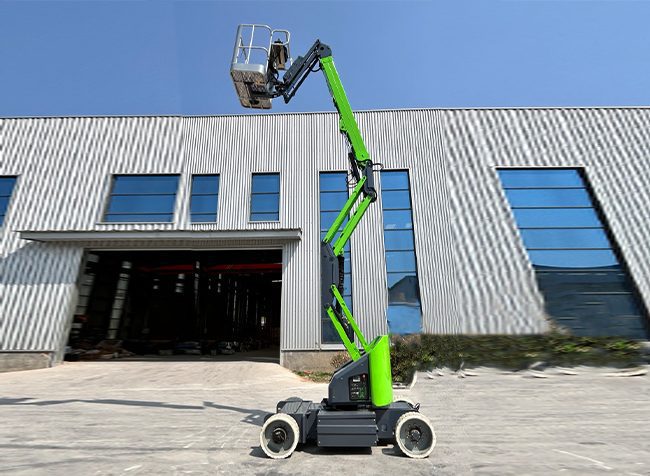

The Jovoo V12 Articulating Boom Lifts are a popular choice for tackling low-height aerial work with precision and ease. With a maximum working height of 12.52 meters, these compact yet powerful machines are perfectly suited for a wide range of applications, including construction, decoration, telecommunications, advertising placement, and airport maintenance.
Engineered for versatility and maneuverability, the Jovoo V11 is designed to navigate tight spaces while providing a stable and secure platform for operators. Its advanced articulation system allows for precise positioning in hard-to-reach areas, making it an invaluable asset for projects that demand both flexibility and reliability.

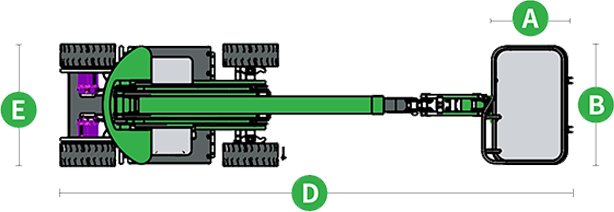

A --- Platform Width: 0.7m
B --- Platform Length: 1.4m

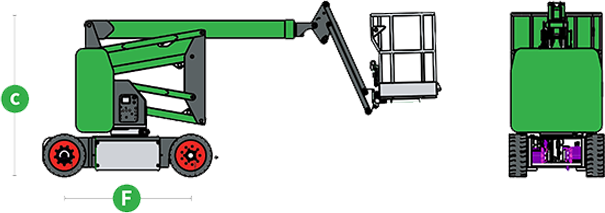

C --- Machine Height: 2.0m
D --- Machine Length: 5.6m
E --- Machine Width: 1.5m
F --- Wheelbase: 1.95m

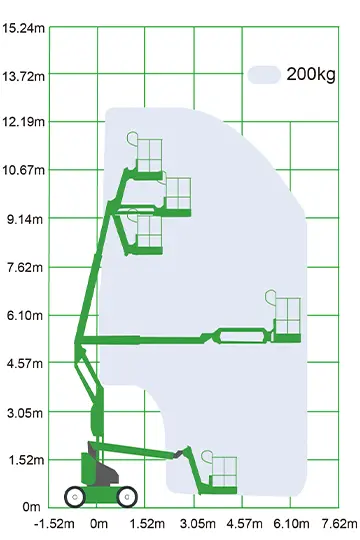

12m Articulating Boom Lift: Video & Range
11m Articulating Boom Lift Details
Specifications
Features
Options
Specifications
| Model | V12 |
| Max working height | 14.2 m |
| Maximum platform height | 10.52 m |
| Maximum crossing height | 4.65 m |
| Maximum working radius | 6.5 m |
| Rated load | 200 kg |
| Ground clearance (center) | 0.14 m |
| Platform rotation | ±80° |
| Turntable rotation | 355° |
| Vertical boom rotation (up/down) | ±70° |
| Movement speed (stowed) | 4.8 km/h |
| Max. climbable (in the stowed position) | 35% |
| Machine weight | 5200 kg |
| Battery | 48V/320Ah |
| Control voltage | 24V |
| Pump motor | 4kW |
| Drive motor | 3.3 kW |
Features
- Intelligent and precise control system, humanized layout, and lubrication-free design, consequently easy to use and maintain.
- It provides comprehensive security protection and rich configuration options. It has the ultimate lightweight layout and long battery life among products of the same level.
- “Σ-shaped” boom with compact structure and flexible extension can realize vertical lifting and horizontal extension and has strong obstacle-surpassing ability.
- 160° rotatable platform provides a larger working range to improve work efficiency.
- The storage state of the boom lift can be switched, the length is only 5.6m meters, and the aluminum alloy working bucket can be disassembled and assembled flexibly.
- Intuitive and friendly control panel makes easy to operate full range operation. Electro-hydraulic proportional system control is accurate and efficient, providing chassis tilt protection, emergency landing, safe speed limit, and flexible start & stop technology.
Options
- Solid, non-marking tires
- Mechanical Anti-Extrusion Protection System
- Air tube connection to platform option
- Lithium battery and power plus generator
- Aluminum alloy and insulated working bucket
- Cold-resistant, fire-resistantand biodegradable hydraulic oil
Specifications
| Model | V11 |
| Max Working Height | 14.2m |
| Max Platform Height | 10.52m |
| Max Crossing Height | 4.65m |
| Max Working Radius | 6.5m |
| Rated Load Capacity | 200kg |
| Ground Clearance (Center) | 0.14m |
| Platform Rotation | ±80° |
| Turntable Rotation | 355° |
| Vertical jib Rotation (Up/Down) | ±70° |
| Driving Speed (Stowed) | 4.8km/h |
| Max Gradeability (Stowed) | 35% |
| Machine Weight | 5200kg |
| Battery | 48V/420Ah |
| Control Voltage | 24V |
| Pump Motor | 4kw |
| Driving Motor | 3.3kw |
- Intelligent and precise control system, humanized layout, and lubrication-free design, consequently easy to use and maintain.
- It provides comprehensive security protection and rich configuration options. It has the ultimate lightweight layout and long battery life among products of the same level.
- “Σ-shaped” boom with compact structure and flexible extension can realize vertical lifting and horizontal extension and has strong obstacle-surpassing ability.
- 160° rotatable platform provides a larger working range to improve work efficiency.
- The storage state of the boom lift can be switched, the length is only 5.8m meters, and the aluminum alloy working bucket can be disassembled and assembled flexibly.
- Intuitive and friendly control panel makes easy to operate full range operation. Electro-hydraulic proportional system control is accurate and efficient, providing chassis tilt protection, emergency landing, safe speed limit, and flexible start & stop technology.
- Solid, non-marking tires
- Mechanical Anti-Extrusion Protection System
- Air tube connection to platform option
- Lithium battery and power plus generator
- Aluminum alloy and insulated working bucket
- Cold-resistant, fire-resistantand biodegradable hydraulic oil
