Model: V16
Key Features:
- Max Working Height: 17.6m
- Platform Capacity: 230kg
- Max Crossing Height: 7.6m
- Weight: 5730kg
16m Articulated Boom Lifts for Sale
Jovoo V16 Articulated Boom Lifts are your cost-effective alternative for mid-height applications. They are best in class for off-road performance, and are also environmentally-friendly machines with lower energy consumption to save cost and budget.

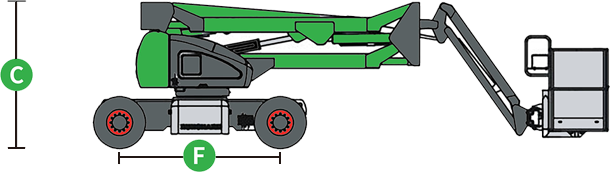

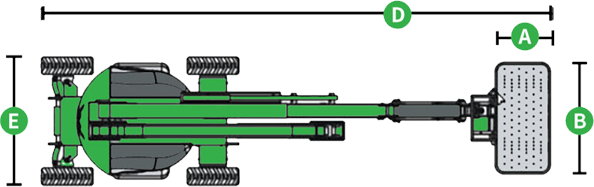

A --- Platform Width: 0.76m
B --- Platform Length: 1.4m
C --- Machine Height: 2.0m
D --- Machine Length: 7.2m
E --- Machine Width: 1.90m
F --- Wheelbase: 2.0m

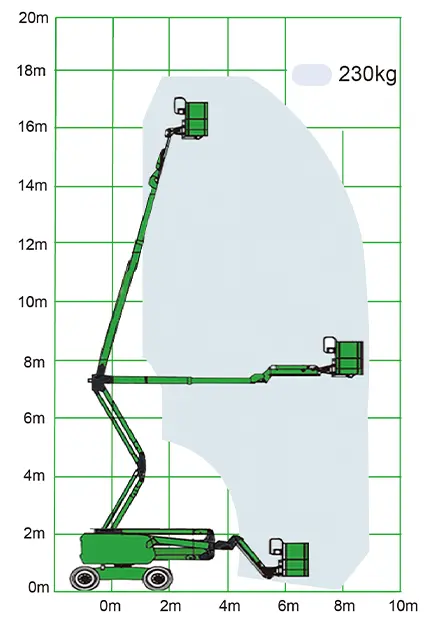

16m Articulated Boom Lift:Video & Range
16m Articulating Boom Lift Details
Specifications
Features
Options
Specifications
| Model | V16 |
| Max Working Height | 17.6m |
| Max Platform Height | 15.7m |
| Max Crossing Height | 7.6m |
| Max Working Radius | 8.9m |
| Rated Load Capacity | 230kg |
| Platform Occupancy | 2 Persons |
| Ground Clearance (Center) | 0.2m |
| Platform Rotation | ±80° |
| Turntable Rotation | 355° |
| Vertical jib Rotation (Up/Down) | ±70° |
| Walking Speed (Stowed) | 5.0km/h |
| Max Gradeability (Stowed) | 30% |
| Machine Weight | 5730kg |
| Battery | 48V/320Ah |
| Control Voltage | 24V |
| Pump Motor | 4kw |
| Driving Motor | 3.3kw |
Features
- The V16 articulating boom lift is equipped with safety protection measures such as tilt alarm, fault alarm, automatic leveling, etc. The booms are all made of high-strength steel plates to ensure the safety of personnel;
- Users can operate the machine with handle instead of switch, hence the micro-movement is smoother and the impact is reduced;
- The performance of hydraulic components is improved as the entire line of oil cylinders, valve groups, oil pipes and joints are allfrom international standard brands, and have undergone extreme tests to ensure reliability and reduce failure rates; balancing valves and hydraulic locks are arranged to lock the position of the oil cylinders during high-altitude operations;
- The overall structure adopts high-strength steel plate, the weight of the whole machine is reduced by more than 10%, and the shrinking running width is reduced by 15%, which ensures the flexibility and driving ability of the whole machine, and expands the application fields; theworking bucket is made of aluminum alloy, light and beautiful;
- By way of weight reduction and optimization of hydraulic and electrical system performance, energy consumption is reduced and construction cost are saved;
- Adopting the follow-up technology, the working platform can beautomatically leveled without additional operation during working, safer and more stable;
- Battery management module adoptshigh-performance charger with a well configured charging curve, greatly improving charging efficiency and battery life;
- The whole machine adopts anew type of joint bearings and sliders, so it is lubrication-free, reducing maintenance and use cost.
Options
- Solid, non-marking tires
- Mechanical Anti-Extrusion Protection System
- Air tube connection to platform option
- Lithium battery and power plus generator
- Aluminum alloy and insulated working bucket
- Cold-resistant, fire-resistantand biodegradable hydraulic oil
Specifications
| Model | V16 |
| Max Working Height | 17.6m |
| Max Platform Height | 16m |
| Max Crossing Height | 7.6m |
| Max Working Radius | 8.9m |
| Rated Load Capacity | 230kg |
| Platform Occupancy | 2 Persons |
| Ground Clearance (Center) | 0.2m |
| Platform Rotation | ±80° |
| Turntable Rotation | 355° |
| Vertical jib Rotation (Up/Down) | ±70° |
| Walking Speed (Stowed) | 5.0km/h |
| Max Gradeability (Stowed) | 30% |
| Machine Weight | 5730kg |
| Battery | 48V/420Ah |
| Control Voltage | 24V |
| Pump Motor | 4kw |
| Driving Motor | 3.3kw |
- The V16 articulating boom lift is equipped with safety protection measures such as tilt alarm, fault alarm, automatic leveling, etc. The booms are all made of high-strength steel plates to ensure the safety of personnel;
- Users can operate the machine with handle instead of switch, hence the micro-movement is smoother and the impact is reduced;
- The performance of hydraulic components is improved as the entire line of oil cylinders, valve groups, oil pipes and joints are allfrom international standard brands, and have undergone extreme tests to ensure reliability and reduce failure rates; balancing valves and hydraulic locks are arranged to lock the position of the oil cylinders during high-altitude operations;
- The overall structure adopts high-strength steel plate, the weight of the whole machine is reduced by more than 10%, and the shrinking running width is reduced by 15%, which ensures the flexibility and driving ability of the whole machine, and expands the application fields; theworking bucket is made of aluminum alloy, light and beautiful;
- By way of weight reduction and optimization of hydraulic and electrical system performance, energy consumption is reduced and construction cost are saved;
- Adopting the follow-up technology, the working platform can beautomatically leveled without additional operation during working, safer and more stable;
- Battery management module adoptshigh-performance charger with a well configured charging curve, greatly improving charging efficiency and battery life;
- The whole machine adopts anew type of joint bearings and sliders, so it is lubrication-free, reducing maintenance and use cost.
- Solid, non-marking tires
- Mechanical Anti-Extrusion Protection System
- Air tube connection to platform option
- Lithium battery and power plus generator
- Aluminum alloy and insulated working bucket
- Cold-resistant, fire-resistantand biodegradable hydraulic oil
