Model: V20
Key Specs:
- Platform Capacity: 230kg/350kg
- Max Working Height: 22.5m
- Max Horizontal Reach: 9.4m
20m Articulated Boom Lifts for Sale

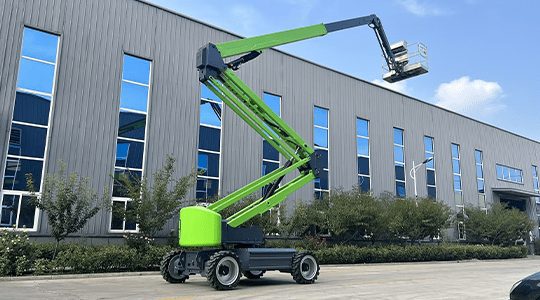

The Jovoo V20 Electric Articulating Boom Lift offers compact dimensions and quiet, emission-free operation in the most sensitive work environments thanks to its eco-friendly AC drive system.

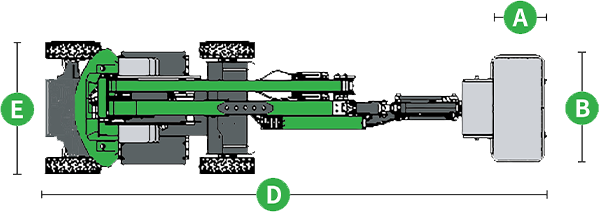

A --- Platform Width: 0.76m
B --- Platform Length: 1.8m

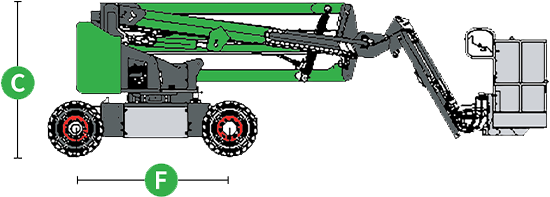

C --- Machine Height: 2.38m
D --- Machine Length: 8.99m
E --- Machine Width: 2.49m
F --- Wheelbase: 2.5m
20m Articulating Boom Lift: Video & Range
20m Articulating Boom Lift Details
Specifications
Features
Options
Specifications
| Model | V20 |
| Max Working Height | 22.5m |
| Max Platform Height | 20.5m |
| Max Crossing Height | 9.4m |
| Rated Load Capacity | 230kg/350kg |
| Max Working Radius | 11.8m |
| Platform Occupancy | 2 or 3 Persons |
| Ground Clearance (Center) | 0.3m |
| Platform Rotation | ±80° |
| Turntable Rotation | 360°Continuous |
| Vertical jib Rotation (Up/Down) | ±70° |
| Walking Speed (Stowed) | 4.5km/h |
| Max Gradeability (Stowed) | 40% |
| Machine Weight | 10000kg |
| Battery | 48V/420Ah |
| Control Voltage | 24V |
| Pump Motor | 12kw |
| Driving Motor | 3.3kw |
Features
- Industry-leading boom lift load capacity: 230kg/350kg.
- The smallest CBM when stowed in the industry make it easy to transit.
- Σ-shaped boom improves work efficiency.
- 5m turning radius is maneuverable and flexible, suitable for narrow spaces.
- Equipped with a 48V/420Ah large-capacity battery to provide longer endurance.
- Advanced four wheel AC driven technology and steering differential control technology provide strong and steady driving experience. The gradeability reaches to 45°.
- The combined application of AC pump control and proportional control technology provides a safer and more stable operation experience.
- Environmental friendly, zero emission, low noise and traceless driving are suitable for indoor clean and construction operations.
Options
- Solid, non-marking tires
- Mechanical Anti-Extrusion Protection System
- Air tube connection to platform option
- Lithium battery and power plus generator
- Aluminum alloy and insulated working bucket
- Cold-resistant, fire-resistantand biodegradable hydraulic oil
